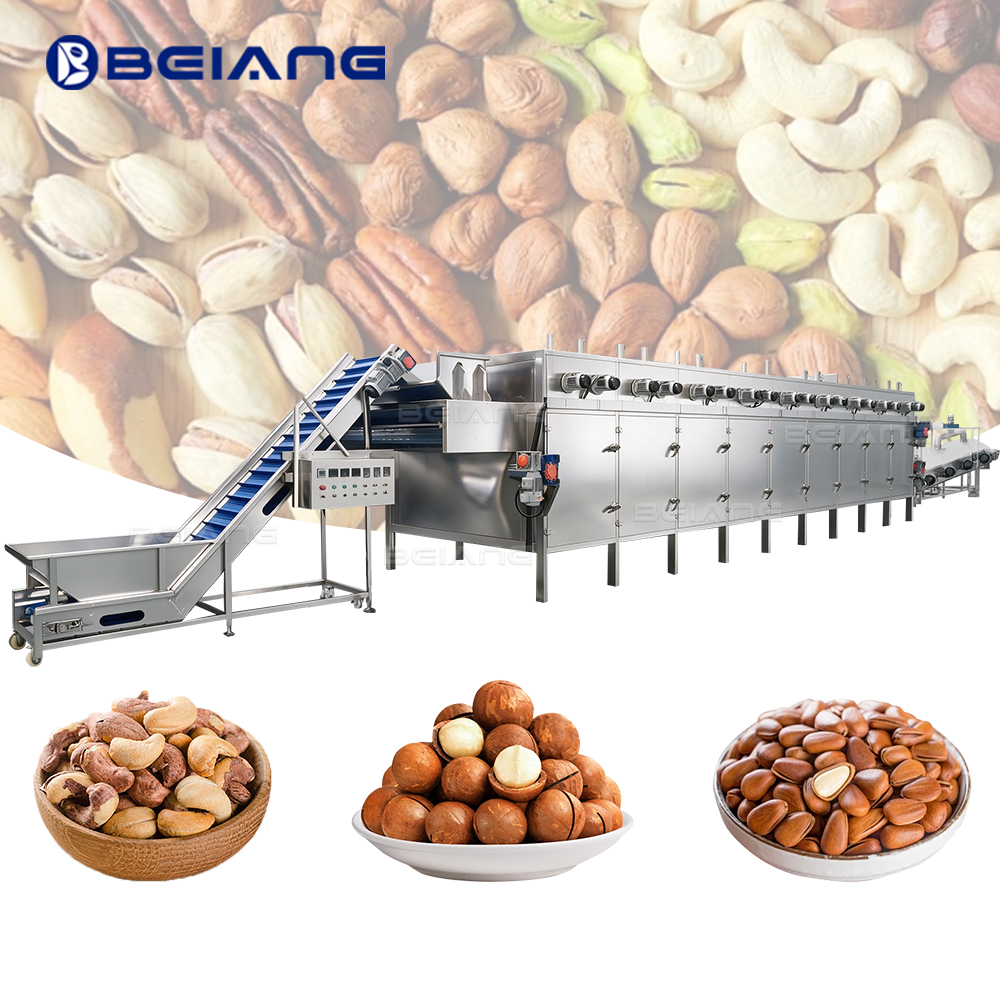

Mesh Belt Dryer Machine & Continuous Conveyor Dryer
A mesh belt dryer is a continuous conveyor dryer that moves a material layer through controlled heating and airflow zones. Selection depends on material form, belt loading, layer depth, inlet and target moisture, residence time, throughput, product-temperature limit and available heat source.
For an engineering review: send the material name, particle or piece size, bulk density, moisture range, required capacity and available installation space.
Aug 25th,202617 Ansichten
Industrial Mesh Belt Dryer Manufacturer & Conveyor Drying Systems A mesh belt dryer is a continuous conveyor dryer for material that can be distributed as a controlled layer and moved through successive airflow and heating zones. Selection should confirm feed form, size distribution, loading depth, inlet and target moisture, product-temperature limit, required throughput, residence-time range, heating source, exhaust duty, hygiene and available line space. Compare other continuous routes when the feed is pumpable, fluidizable or requires rapid dispersion rather than belt transport.
Beilang Machinery designs continuous mesh belt dryers for uniform, energy-conscious drying of food, vegetables, minerals, chemicals and other bulk materials.
Use of forced ventilation through the flow drying principle, the bin is equipped with wind dividers, and the material is dried evenly.
The whole machine has small noise and smooth operation. Temperature self-control, easy installation and maintenance.
Wide range of applications, and can dry many kinds of materials.
Button control or PLC human-machine interface control.
With working program and process parameters storage memory and printing function (according to customer requirements).
Working Principle
The mesh belt dryer is a continuous production drying equipment. The main heating methods are electric heating, steam heating and hot air heating. The main principle is to spread the material evenly on the mesh belt. The mesh belt is made of 12-60 steel mesh belt, which is dragged by the transmission device to move back and forth in the dryer. The drying machine is discharged from the moisture exhaust hole to achieve the purpose of drying. The length of the box is composed of standard sections. In order to save space, the dryer can be made into a multi-layer type. 6-40m, effective width 0.6-3.0m.
The whole equipment consists offeeding system,hot air system,discharge system,andmoisture discharge system.
The charging system makes the materials evenly dispersed on the screen plate and conveyed to the drying section at a uniform speed. The hot air system is to provide the heat source required for drying, providing 80~120℃ hot air to the drying chamber. When the conveyor belt passes through, the hot air passes through the materials on the conveyor belt from top to bottom or from bottom to top so that the materials can be dried evenly and finally discharged by the discharge system.
Applications
Conveyor mesh belt dryer is a commonly used continuous drying equipment, which can be widely used in chemical, food, medicine, building materials, electronics and other industries, especially suitable for drying sheet, strip and granular materials with good ventilation. Paste-like materials such as filter cakes can also be dried after being formed by a granulator or an extruder.
A mesh belt dryer is a continuous conveyor dryerthat moves a material layer through controlled heating and airflow zones. Selection depends on material form, belt loading, layer depth, inlet and target moisture, residence time, throughput, product-temperature limit and available heat source.
For an engineering review:send the material name, particle or piece size, bulk density, moisture range, required capacity and available installation space.
Industrial Mesh Belt Dryer Manufacturer & Conveyor Drying Systems
A mesh belt dryer is a continuous conveyor dryer for material that can be distributed as a controlled layer and moved through successive airflow and heating zones.Selection should confirm feed form, size distribution, loading depth, inlet and target moisture, product-temperature limit, required throughput, residence-time range, heating source, exhaust duty, hygiene and available line space. Compare other continuous routes when the feed is pumpable, fluidizable or requires rapid dispersion rather than belt transport.
Griffin Machinery designs continuous mesh belt dryers for uniform, energy-conscious drying of food, vegetables, minerals, chemicals and other bulk materials.
Use of forced ventilation through the flow drying principle, the bin is equipped with wind dividers, and the material is dried evenly.
The whole machine has small noise and smooth operation. Temperature self-control, easy installation and maintenance.
Wide range of applications, and can dry many kinds of materials.
Button control or PLC human-machine interface control.
With working program and process parameters storage memory and printing function (according to customer requirements).
The mesh belt dryer is a continuous production drying equipment. The main heating methods are electric heating, steam heating and hot air heating. The main principle is to spread the material evenly on the mesh belt. The mesh belt is made of 12-60 steel mesh belt, which is dragged by the transmission device to move back and forth in the dryer. The drying machine is discharged from the moisture exhaust hole to achieve the purpose of drying. The length of the box is composed of standard sections. In order to save space, the dryer can be made into a multi-layer type. 6-40m, effective width 0.6-3.0m.
The whole equipment consists offeeding system,hot air system,discharge system,andmoisture discharge system.
The charging system makes the materials evenly dispersed on the screen plate and conveyed to the drying section at a uniform speed. The hot air system is to provide the heat source required for drying, providing 80~120℃ hot air to the drying chamber. When the conveyor belt passes through, the hot air passes through the materials on the conveyor belt from top to bottom or from bottom to top so that the materials can be dried evenly and finally discharged by the discharge system.
Applications
Conveyor mesh belt dryer is a commonly used continuous drying equipment, which can be widely used in chemical, food, medicine, building materials, electronics and other industries, especially suitable for drying sheet, strip and granular materials with good ventilation. Paste-like materials such as filter cakes can also be dried after being formed by a granulator or an extruder.
